420MM BKM LOOPING PIT SLITTING LINE

BKM

420 X 4MM BKM SINGLE-PIT HIGH CARBON STEEL SLITTING LINE

Manufacturer: BKM (Germany)
Line Direction: Right to left

Line Speed Range:
0 - 200mpm (656fpm) - continuously adjustable

Strip width Range: 15 - 420mm (0.595 - 16.5")
Thickness Range: 0.3 - 4mm (0.01181 - 16.5")

Material Specifications:
Cold Rolled Steel
Yield Strength: >750 N/mm²


Complete Line with the Following Components:

Entry Pit Type Coil Car
6 Ton Max Coil Weight

Mandrel Uncoiler
40KW DC drive
Coil ID: 500mm (20")
Coil OD: 1950mm (77")
6 Ton Max Coil Weight
Hydraulic Expansion
Hydraulic Pinch Roll Arm

Peeler Table NEW 2024 (MGK-Maschinenbau, Germany)

Entry Felt Brake, Hydraulic

Entry Double Sided Edge Guides, manually adjustable


Slitting Head
58KW DC Drive
Hydraulic Opening/Closing system
Height Adjustment via Electric Spindle Drive
100mm (3.937") Shaft OD

Tooling OD Range: 262.00mm - 223.00mm (10.315" - 8.778")



Scrap Guiding Rolls at Slitting Head Exit

Scrap Winder

1 Set of Deburring Rolls - Driven/Non-Driven

Pit after Deburring Rolls - 3m deep

Tension Stand with Entry Roller Table, Driven Deflector Roll, Pneumatic Felt Brake and Hydraulic Crop Shear

Recoiler
75KW DC Drive
5.5 Ton Max Coil Weight
400 + 500mm Mandrels (15.748" - 19.685")
Max. Coil OD: 1550mm (61.023")
Over Arm Separator
Full Hydraulic Drum
Push Off Plate

Exit 2-Arm Turnstyle Type Coil Car
5.5 Ton Max Coil Weight

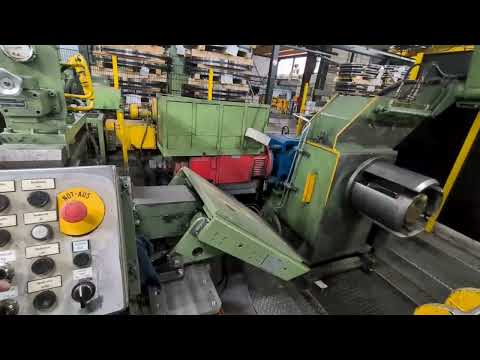

Machine Installed and under power!!!

Codezad Tyepfx Agrehd

Complete Line with Hydraulics, Electrics , Controls, Drawings, Tools
