PYSTYSUORA ELEKTRONINEN LASIPORAKONE

EXPOGLASS ® Priam

ELECTRONIC VERTICAL DRILLING MACHINE FOR GLASS
MODEL: PRIAM
Gjtqtl9bw
MANUFACTURED IN 2022/ BRAND NEW

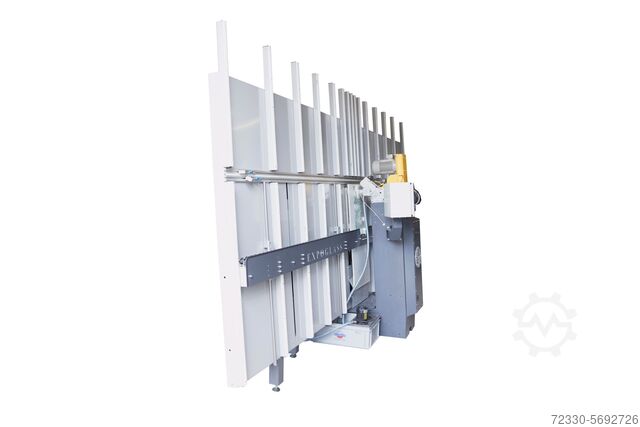

Priam model is a two-spindle (double-sided) vertical glass drilling machine. It is designed for customers looking for a functional and easy-to-use machine that is also durable. When designing it, we went back to the old school of machine construction – on heavy, heat-treated steel bodies with mechanical solutions for subsequent easier operation and servicing. With this different approach to design and manufacturing, our machine ensures many years of trouble-free glass drilling, providing a multiple return on investment.

To make sure that the components of our drill are made with due care, we manufacture them in Poland using local contractors. The main body is made on site, by our company, and then heat treated and processed further in local areas. This ensures that all production is carried out under our careful supervision, and any imperfections can be detected and corrected before the product reaches the customer. This ultimately also supports the local machinery industry.
The product’s components are at the highest European level. Our suppliers include SIEMENS, HITACHI, UNITRONICS,SCHNEIDER,GARLOCK
Mechanical components are accessible, while in-service replacement is simple and quick.

The Expoglass Priam drill - functionality at the highest level:

⦁ 2 spindles (front and back) – allowing to drill the pane in a single pass – without turning it

⦁ Electronically controlled loading bar – in order to set the size of the bottom edge of the glass from the hole, you just need to enter the required size on the touch screen and the machine will automatically adjust to the right position

⦁ Quick drilling bit change mode – after pressing the drill bit change button, both spindles are automatically locked (they cannot be turned), the vertical table, located between both drilling bit, slides down – thus opening a large space between them. This means that the drill bits can be unscrewed without the use of a wrench, and there is plenty of space to perform this operation comfortably.

⦁ Automatic (electronic) measurement of the drill bits length and position – after the drill bits have been changed, the machine automatically calibrates them, measuring their length so that it knows the distance between the glass and the drilling end of each bit – very important in small plants where there are no series, but most of the holes are made individually

⦁ Automatic (electronic) calculation of spindle cavity depth – after automatic calibration of spindles, the machine measures the thickness of drilled glass by itself, by pressing the glass, and then selects the perfect values of cavities on its own. The operator's only task is to click the "drill" button, the process is completely automatic

⦁ Electronically controlled feed of the spindles – significantly increases machine capabilities, in addition to enabling the operation of most of the foregoing functionalities, it also makes the feed values perfectly adaptable to any situation and changeable with just a few clicks on the screen. This is illustrated, for example, by the fact that e.g. after drilling a 15 mm piece of glass, you take 10 seconds to change the settings, you can immediately drill a 2 mm glass pane without fear of cracking or chipping. And all this without the experience and "intuition" of the operator
