Puoliperävaunu

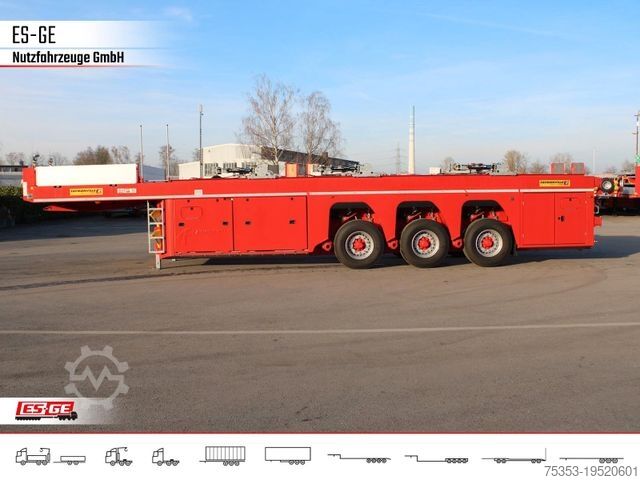

FAYMONVILLE Prefamax Innenlader 3 x LASI

You can find our complete vehicle inventory, including vehicles available immediately and at short notice, on our website.

Excerpt from the equipment features. Complete specifications available on request.

GOOSENECK
* Gooseneck designed as a loading platform with aluminum checker plate covering
* Hydraulic lifting rocker, approx. -280/+250 mm, can be raised and lowered
* Two kingpin positions at approx. 2,300 mm and approx. 2,000 mm
* For tractor units: 4x2, 6x2, or 6x4
* 2-inch kingpin
* 3 pairs of recessed lashing rings on the gooseneck (LC 6,300 daN)
* ASPÖCK UNIBOX on the front connection panel with 24N, 24S, and 15-pin sockets; 24N connection according to ISO 1185, 24S connection according to ISO 3731
* 15-pin connection according to ISO 12098
* Yellow-red air couplings on the front connection panel
* Lighting for operation of the gooseneck, suspension, and hydraulic bracing with on/off switch
* Boom for suspending supply lines on the front of the gooseneck
* All work lights in the gooseneck area operated via on/off switch on the gooseneck

LOADING AREA
* Loading well, approx. 9,500 mm long, with angle profiles mounted underneath for loading pallet support (distance from kingpin to axle center approx. 8,000 mm)
* BPW stub axles with drum brakes and independent suspension, hydraulic axle compensation with lifting and lowering function
* Tires: 385/65 R 22.5 (M+S)
* Mechanical drop-leg supports for approx. 48,000 kg support load
* Access ladder mounted front right, with 2 removable handrails
* Detachable full coverings on both sides in front of the axle assembly
* WABCO Roll Stability Support (RSS)
* 9 pairs of lashing rings (LC 6,300 daN) on the longitudinal beams
* Grating support on the longitudinal beams, flush with integrated load securing guide rails
* First and last axle manually liftable (left and right)
* Storage boxes behind the axle assembly on left and right, splash-water protected
* Rear chamfer for easier insertion of pallets
* Lashing eyes at the end traverse for mechanical bracing
* Rear door with cross-bracing, hinged on the left and hydraulically locked on the right, can be secured horizontally at 90°, 105°, and 270°
* Underride guard foldable upwards for transporting up to 4 empty standard pallets
* Number plate holder with lighting on the rear door
* A 7-pin socket on the end traverse
* Electro-hydraulic unit for operating hydraulic functions (without installation in the tractor unit)
* TPMS tire pressure monitoring sensors installed on all wheels, including spare wheels
* Control lights indicating nominal ride height in the vehicle control area
* 1 odometer mounted on the left
* 2 axle load gauges with axle load diagram mounted on the left
* 2 rubber buffers at the front of the loading channel as stops for the pallet
* Hydraulic preparation including controls for mounting 4 pairs of our hydraulic load securing systems
* 1 spare wheel holder on the right (in the direction of travel)
* EU reflector at the rear of the vehicle
* Acoustic reversing warning signal
* Round NATO socket on the front connection panel (Maeler & Kaege VG 96 917)

Credpfx Acjwx Dc Hjweh
BRAKE SYSTEM:
* WABCO EBS brake system in accordance with EU regulations. WITHOUT connecting cable to tractor unit

LIGHTING SYSTEM:
* 24-volt lighting system in ASPÖCK-NORDIK full LED version, compliant with EU regulations (ASS 3)

SURFACE TREATMENT
HRM metallization
